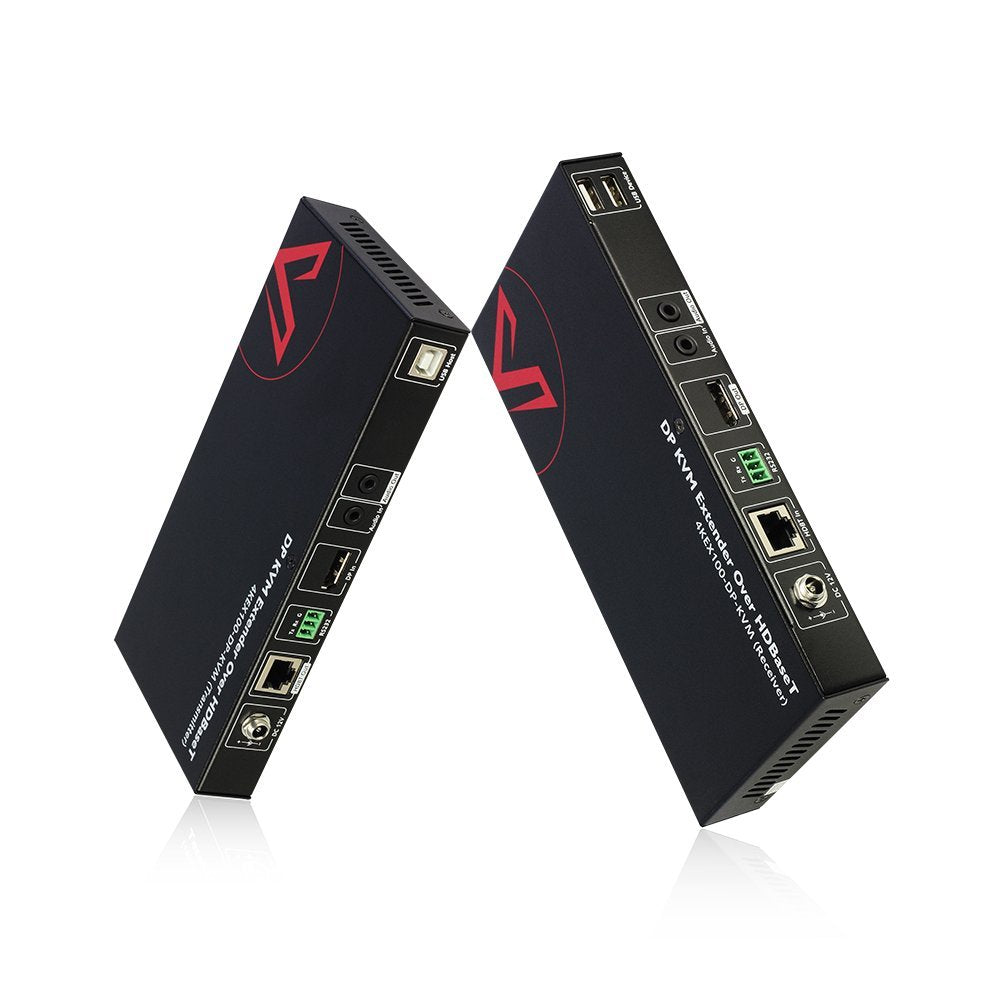

HDBaseT DisplayPort KVM Extender with 2 USB 2.0 Port Y224
Sale price
$14.90
Regular price $62.31
Skip to product information
【4K HDBaseT DP KVM Extender 】supports high resolution up to UHD 4k@30Hz (4:4:4) and 1080P@120Hz, supports HDCP 1.4. It supports long distance transmission up to 100m for both 4k and 1080p.

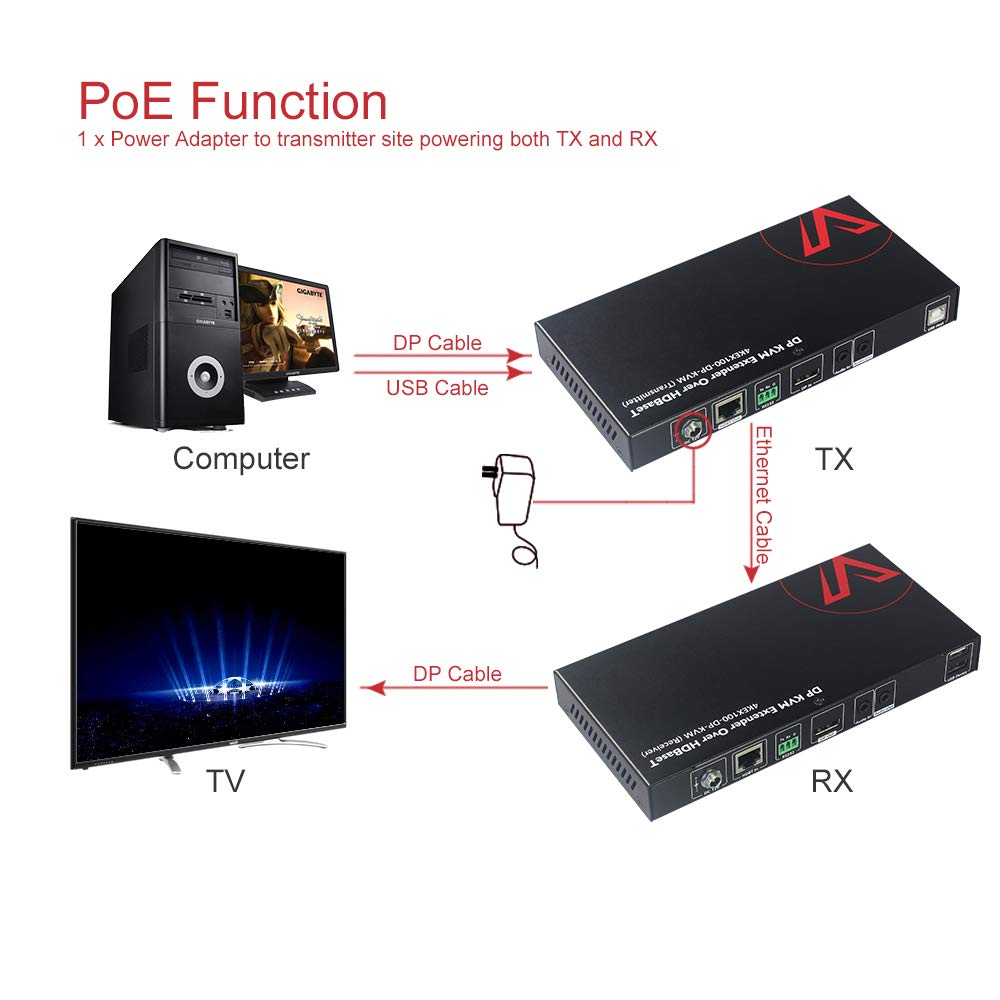

【EDID and PoE Function】AV Access KVM Extender automatic EDID management, intelligently choose the most suitable resolution for your device. It supports RS232 control and one-way PoE function, powers both transmitter and receiver with one adapter. It suppports bi-directional analog audio pass-through over HDBaseT, fantastic stereo audio effect.
【High Spped USB 2.0 over HDBaseT】AV Access Display Port KVM Extender provides 2 USB 2.0 Port over HDBaseT, high speed transmission up to 480Mbps, Zero Delay, smooth and stable for keyboard, mouse and other USB 2.0 devices.

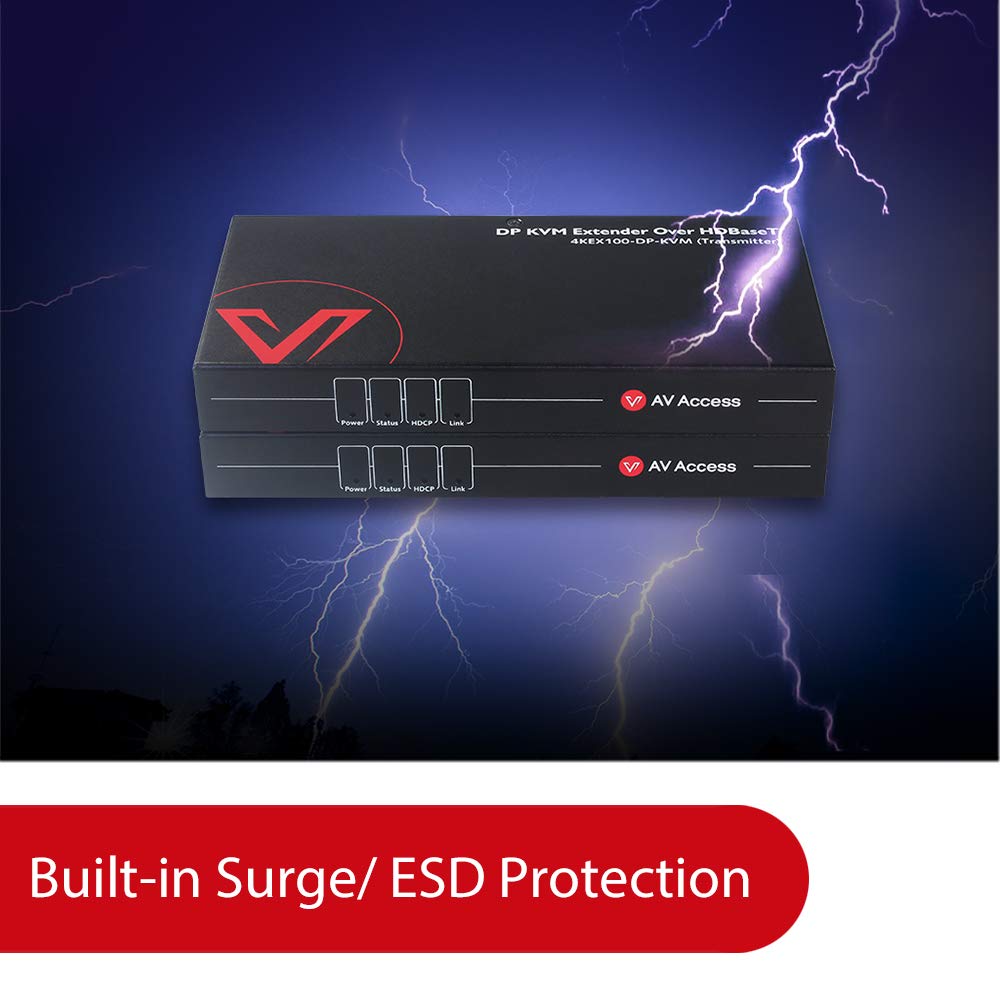

【Protection】AV Access KVM Extender is certificated by FCC and CE. It provides built-in Surge/Lightning Protection and superior ESD Protection: +/- 8KV(Air-gap discharge) +/- 4KV(contact discharge). Our technical and customer service team are always here for you.
HDBaseT DisplayPort KVM Extender with 2 USB 2.0 Port Y224
Sale price
$14.90
Regular price $62.31
Shipping calculated at checkout.
【4K HDBaseT DP KVM Extender 】supports high resolution up to UHD 4k@30Hz (4:4:4) and 1080P@120Hz, supports HDCP 1.4. It supports long distance transmission up to 100m for both 4k and 1080p.
【EDID and PoE Function】AV Access KVM Extender automatic EDID management, intelligently choose the most suitable resolution for your device. It supports RS232 control and one-way PoE function, powers both transmitter and receiver with one adapter. It suppports bi-directional analog audio pass-through over HDBaseT, fantastic stereo audio effect.
【High Spped USB 2.0 over HDBaseT】AV Access Display Port KVM Extender provides 2 USB 2.0 Port over HDBaseT, high speed transmission up to 480Mbps, Zero Delay, smooth and stable for keyboard, mouse and other USB 2.0 devices.
【Protection】AV Access KVM Extender is certificated by FCC and CE. It provides built-in Surge/Lightning Protection and superior ESD Protection: +/- 8KV(Air-gap discharge) +/- 4KV(contact discharge). Our technical and customer service team are always here for you.
| U2EX50 | HDEX80-KVM | 4KEX100-KVM | 4KIP100-KVM | 4KEX100-DP-KVM | |
|---|---|---|---|---|---|
| Video Resolution | 1080p @60Hz | 4K@60Hz (4:2:0 8bit), 4K@30Hz 4:4:4, 1080p @60Hz | 4K@30Hz, 1080p @120Hz | 4K@30Hz | |
| Transmission Range | 165ft (50m) | 260ft (80m) | 330ft (100m) | 395ft (120m) | 330ft (100m) |
| USB Extension | Yes (4 Ports USB 2.0) | Yes (2 Ports USB 2.0) | Yes (4 Ports USB 2.0) | Yes (3 Ports USB 2.0) | Yes (2 Ports USB 2.0) |
| POE | Bi-Direction | Uni-Direction(TX to RX) | No | Uni-Direction(TX to RX) | |
| RS232 | No | ✓ | No | ✓ | |
| Video Port | USB | HDMI | HDMI | HDMI | DisplayPort |
| With Router/Ethernet Switch | No. Point to Point | No. Point to Point | Yes. Up to 16 Sets of TX and RX | No. Point to Point | |
| Plug & Play | ✓ | ✓ | ✓ | ✓ | ✓ |
| Video Signal | HDMI | HDMI | HDMI | DisplayPort |
