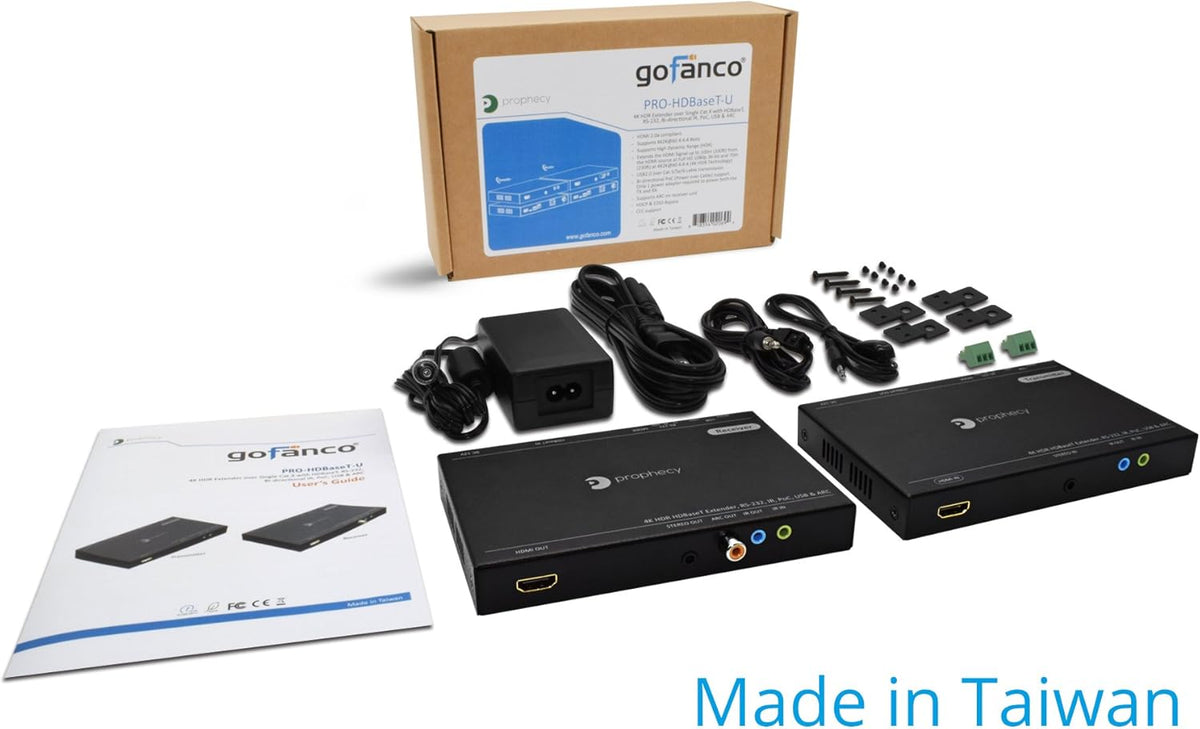

HDBaseT HDMI 2.0 Extender 4K 60Hz A834649
Sale price
$24.99
Regular price $89.69
Skip to product information

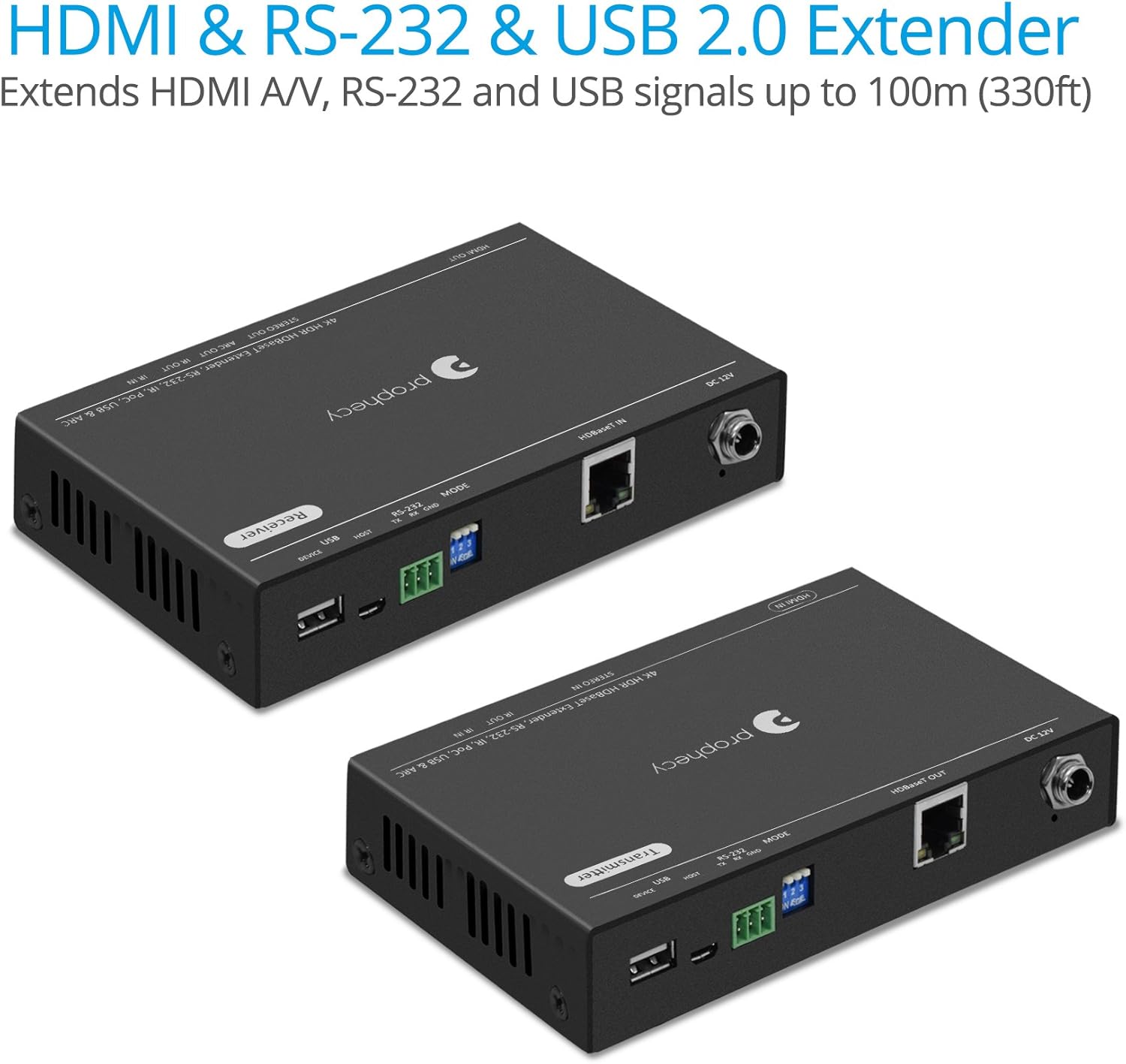

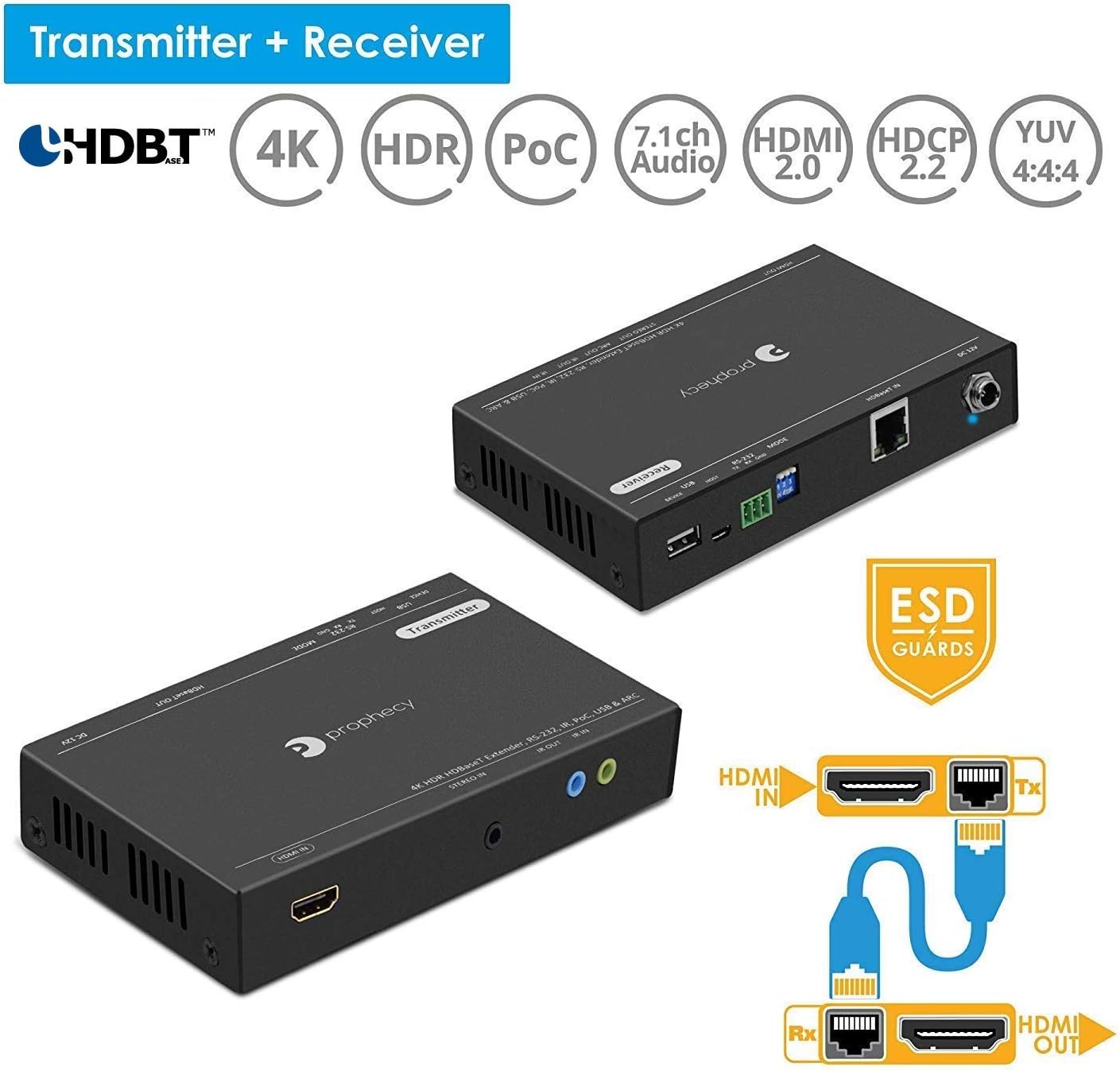

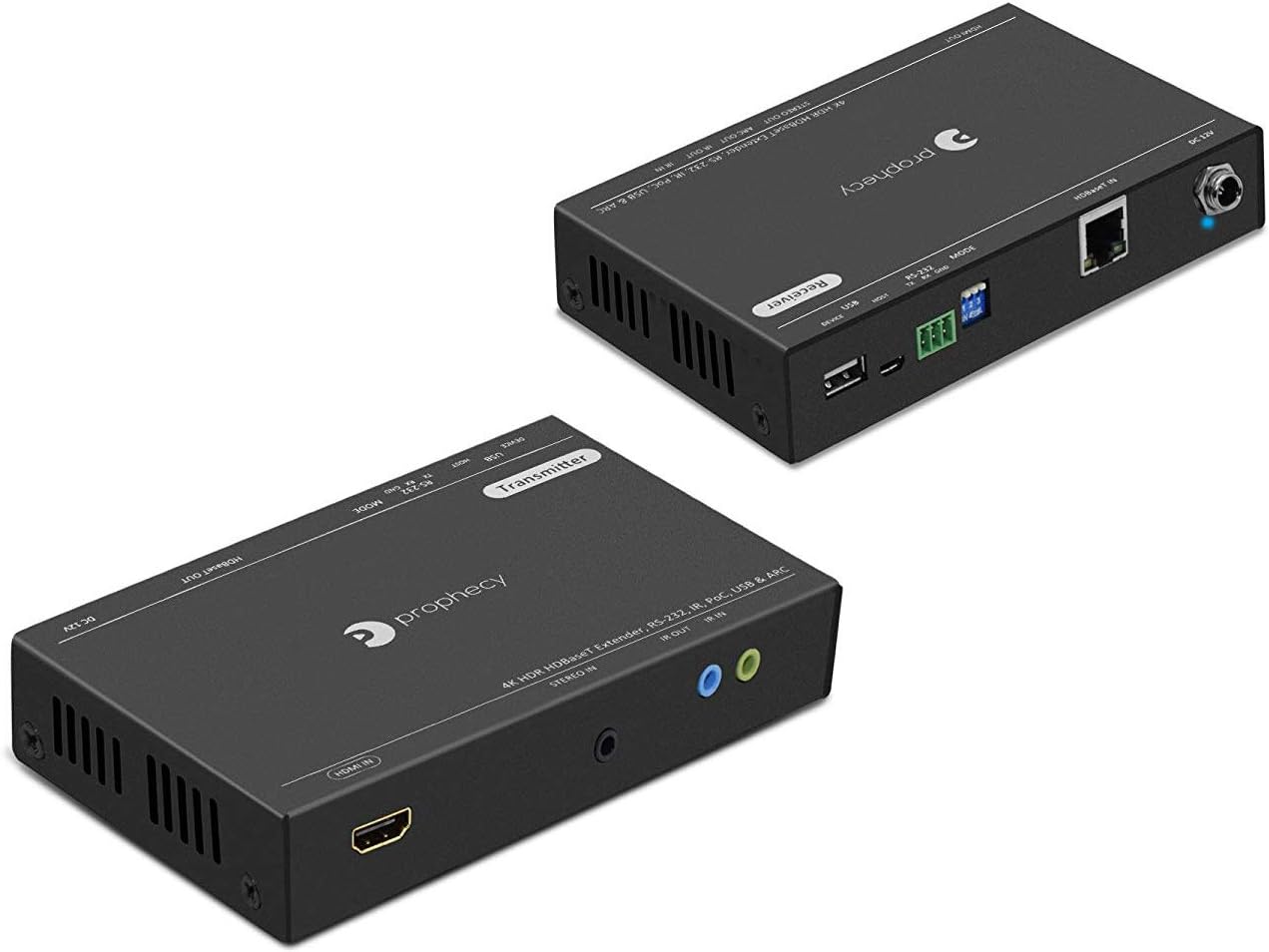

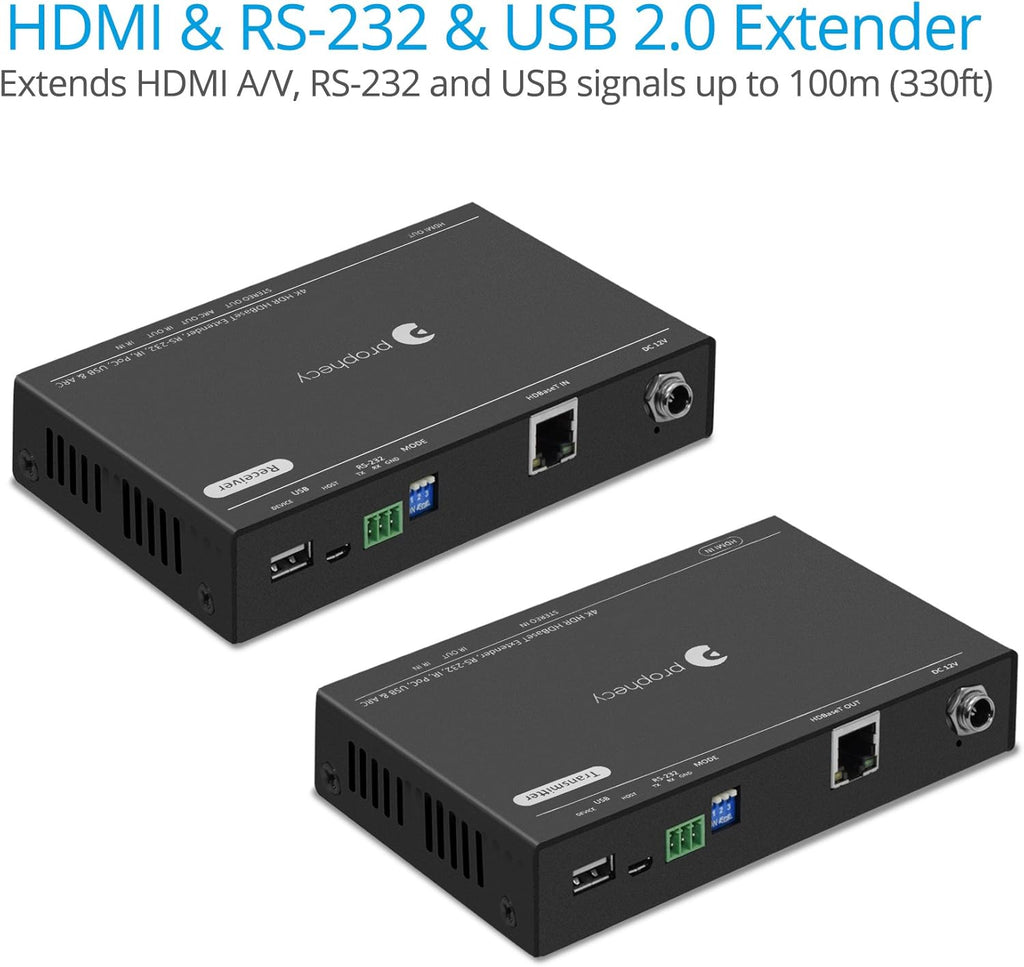

LONG RANGE 4K/60Hz HDBASET HDMI 2.0 Extender - Extend HDMI audio/video signals 1080P up to 328 feet (100 meters) or 4K@60Hz (4:4:4) up to 230 feet (70 meters) over Cat5e/6/7 cable. Support 3D, HDR. The video is transmitted using lossless HDBaseT technolgy. We recommend using high performance pure COPPER gofanco CAT6 cables to ensure reliable performance: Search CAT6UTP-100(B07PB3R8BK)/CAT6UTP-150(B07P6TDMLH) on Amazon.
ADVANCED FEATURES - Support HDMI 2.0a HDCP 2.2, Ultra HD 4K/60Hz YUV 4:4:4, HDR, 18Gbps bandwidth, CEC, and PoC. HDCP 2.2 is the next generation of copy protection for the 4K era. Supports DTS-HD, Dolby TrueHD, 7.1ch digital audio and all other HDMI standard formats. USB 2.0 Extension �?Supports keyboard/mouse and interactive applications, such as touch panels
USB 2.0 EXTENSION �?Allows for the control of your source PC device remotely up to 328ft (100m) with a USB 2.0 powered keyboard/mouse or interactive touch panel. Fast data transfer rates up to 480 Mbps with near zero latency. Compatibility with the latest HDMI source and display devices, such as Apple TV 4K, Roku 4, Amazon Fire TV 4K, cable box, Xbox One X, PS4 Pro and more. !!NOTE!! Does not support HDMI 1.2 and earlier.

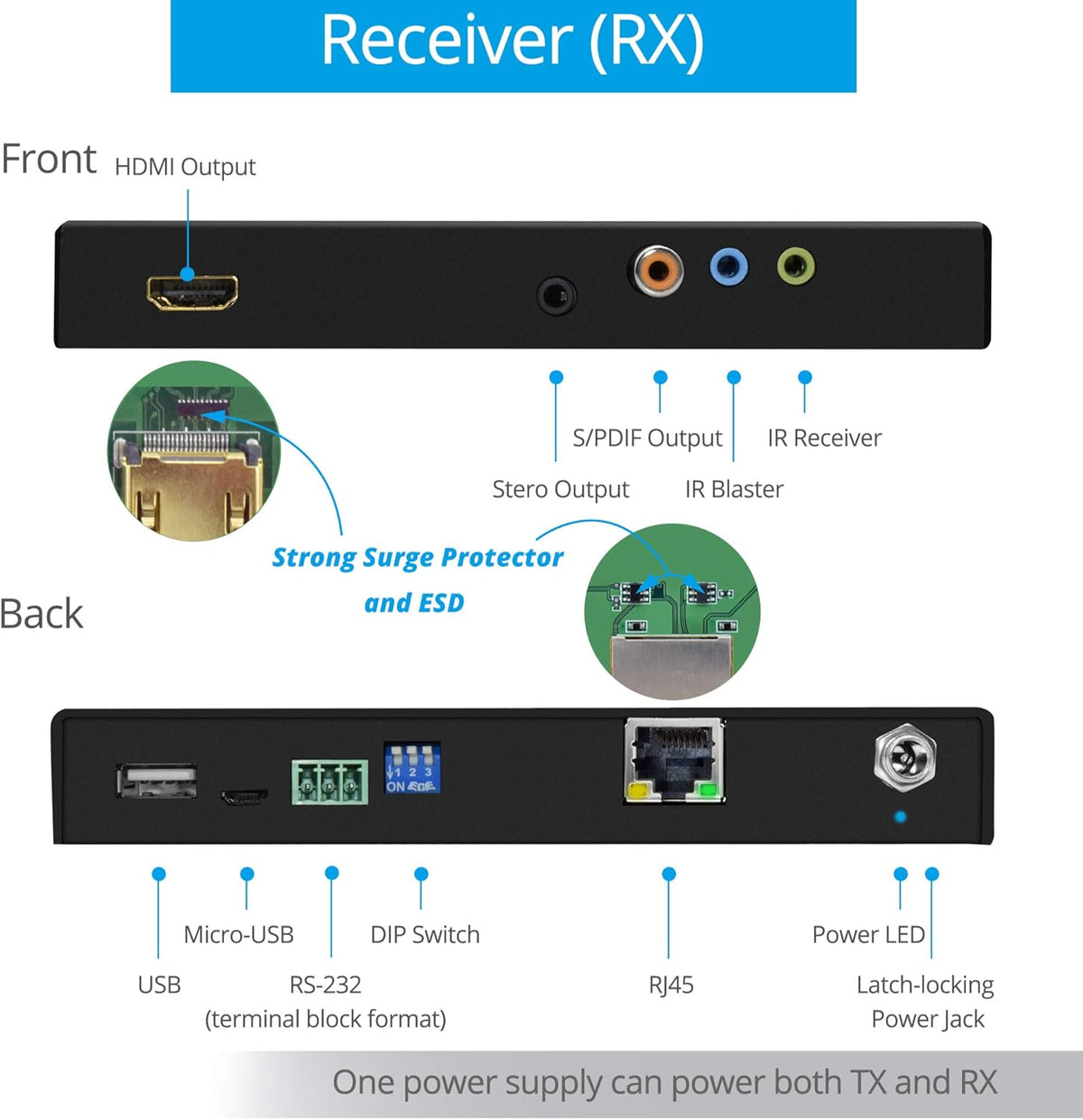

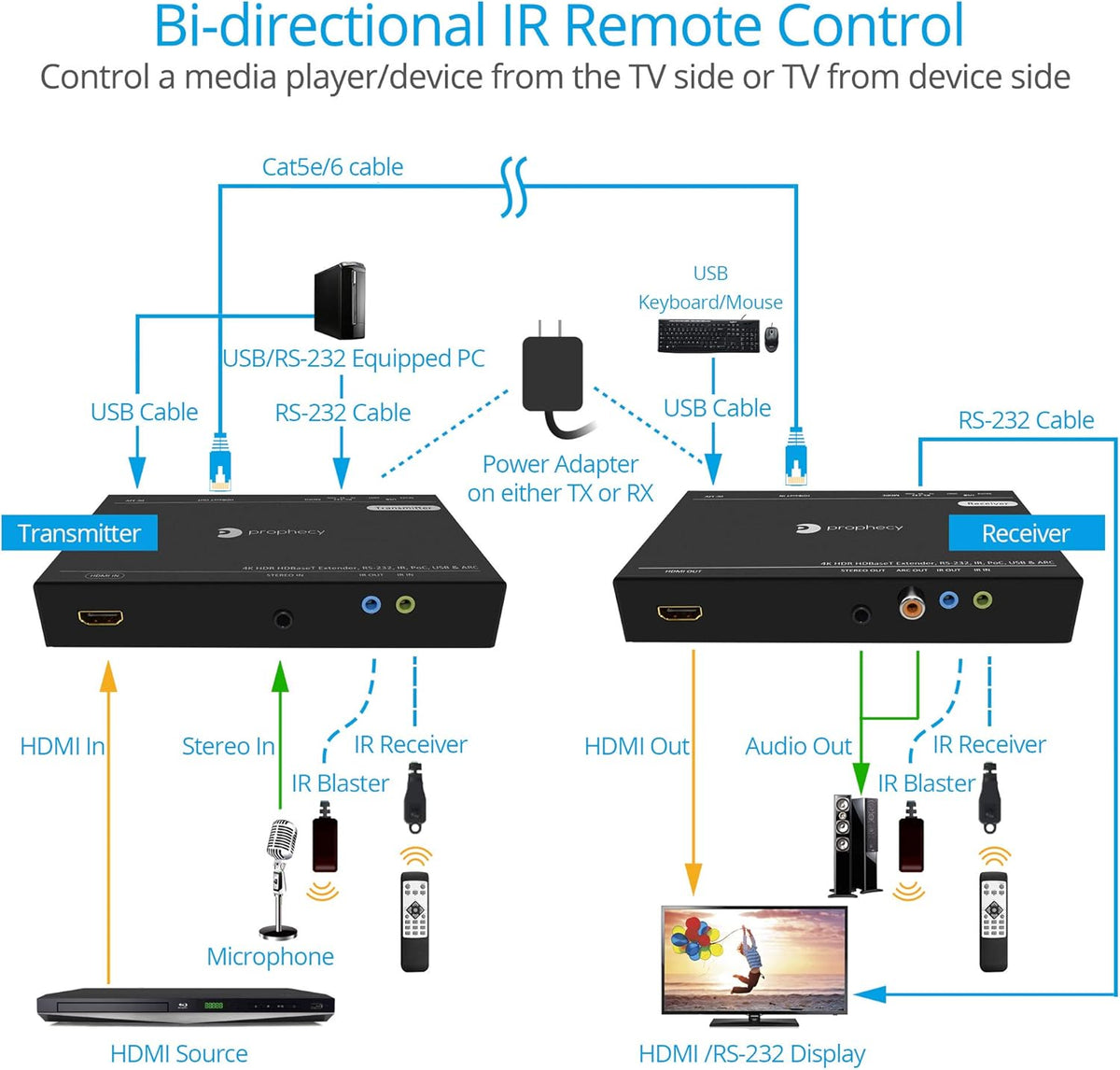

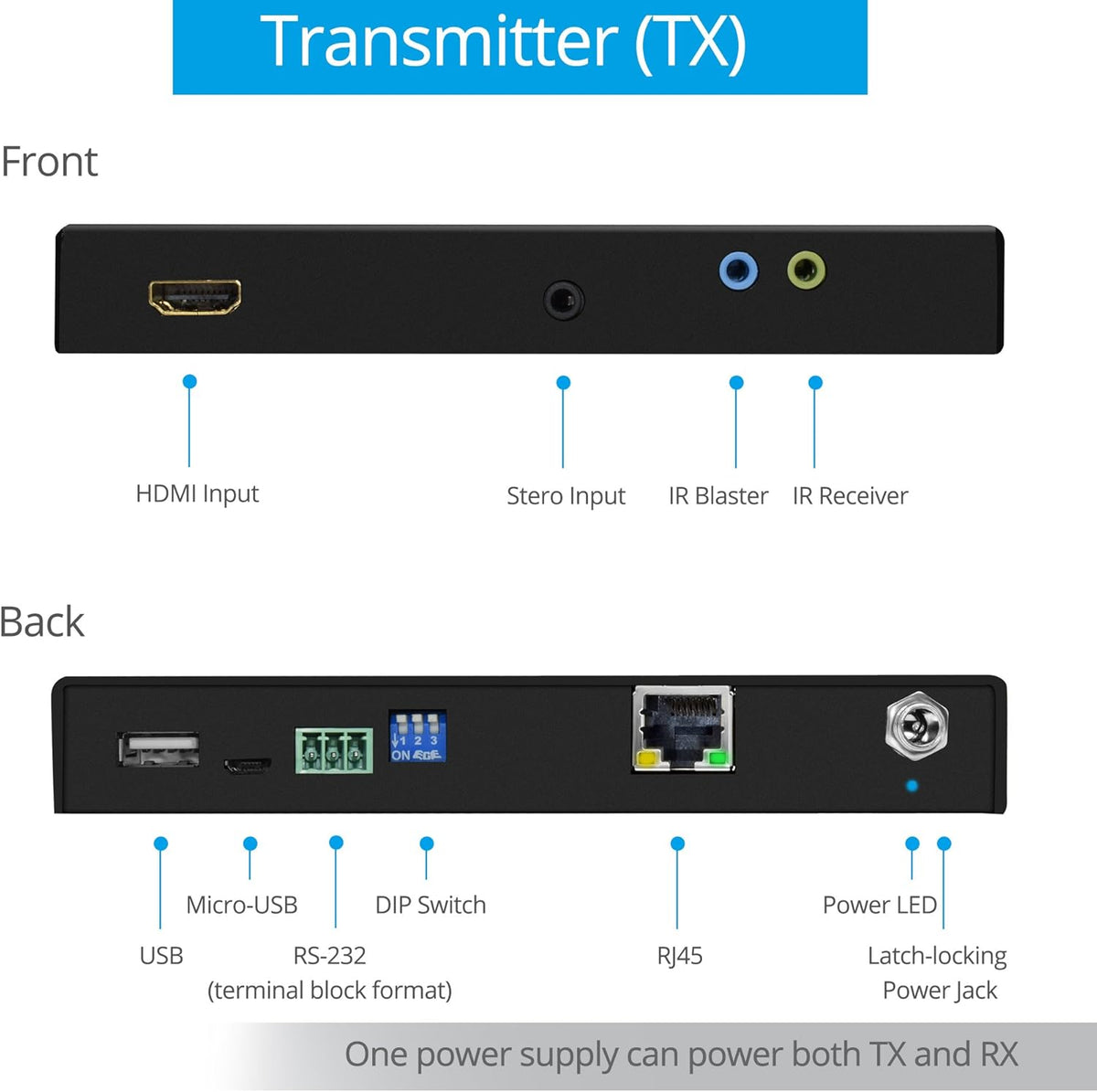

BI-DIRECTIONAL IR Extends IR signal from source to receiver or from transmitter to receiver. Bi-directional POWER OVER CABLE (PoC) - Allows one power adapter to power both the TX & RX units. Full duplex RS-232 to control RS-232 devices as scanners and touchscreen displays up to 115,200 bps.
MADE IN TAIWAN with HIGH QUALITY COMPONENTS �?FCC, CE & RoHS compliant. Surface mountable metal enclosure with ESD protection to prevent malfunction or breakdown. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. If you have any questions or concerns, visit our gofanco website or click on our name in As an official member of the HDBaseT Alliance, gofanco stands behind our HDBaseT product line with professional knowledge and experience.
HDBaseT HDMI 2.0 Extender 4K 60Hz A834649
Sale price
$24.99
Regular price $89.69
Shipping calculated at checkout.
LONG RANGE 4K/60Hz HDBASET HDMI 2.0 Extender - Extend HDMI audio/video signals 1080P up to 328 feet (100 meters) or 4K@60Hz (4:4:4) up to 230 feet (70 meters) over Cat5e/6/7 cable. Support 3D, HDR. The video is transmitted using lossless HDBaseT technolgy. We recommend using high performance pure COPPER gofanco CAT6 cables to ensure reliable performance: Search CAT6UTP-100(B07PB3R8BK)/CAT6UTP-150(B07P6TDMLH) on Amazon.
ADVANCED FEATURES - Support HDMI 2.0a HDCP 2.2, Ultra HD 4K/60Hz YUV 4:4:4, HDR, 18Gbps bandwidth, CEC, and PoC. HDCP 2.2 is the next generation of copy protection for the 4K era. Supports DTS-HD, Dolby TrueHD, 7.1ch digital audio and all other HDMI standard formats. USB 2.0 Extension �?Supports keyboard/mouse and interactive applications, such as touch panels
USB 2.0 EXTENSION �?Allows for the control of your source PC device remotely up to 328ft (100m) with a USB 2.0 powered keyboard/mouse or interactive touch panel. Fast data transfer rates up to 480 Mbps with near zero latency. Compatibility with the latest HDMI source and display devices, such as Apple TV 4K, Roku 4, Amazon Fire TV 4K, cable box, Xbox One X, PS4 Pro and more. !!NOTE!! Does not support HDMI 1.2 and earlier.
BI-DIRECTIONAL IR Extends IR signal from source to receiver or from transmitter to receiver. Bi-directional POWER OVER CABLE (PoC) - Allows one power adapter to power both the TX & RX units. Full duplex RS-232 to control RS-232 devices as scanners and touchscreen displays up to 115,200 bps.
MADE IN TAIWAN with HIGH QUALITY COMPONENTS �?FCC, CE & RoHS compliant. Surface mountable metal enclosure with ESD protection to prevent malfunction or breakdown. Our products are backed with a 1-year limited warranty and experienced tech support team in Silicon Valley. If you have any questions or concerns, visit our gofanco website or click on our name in As an official member of the HDBaseT Alliance, gofanco stands behind our HDBaseT product line with professional knowledge and experience.
| HDbaseT-Ext | HDbaseT-HDR | HD20Ext | PRO-HDbaseT-U | PRO-HDbaseT-RS100 | HDBaseT-HD20 | |
|---|---|---|---|---|---|---|
| Supported Resolution | 4K@60Hz 4:2:0, 4K@30Hz 4:4:4, 1080p @60Hz, 3D | 4K @60Hz (4:2:0 10-bit), 4K @60Hz (YUV 4:4:4 8-bit) 1080p@60Hz, 3D | 4K @60Hz (4:2:0 10-bit), 4K @60Hz (YUV 4:4:4 8-bit) 1080p@60Hz, 3D | 4K @60Hz (4:2:0 10-bit), 4K @60Hz (YUV 4:4:4 8-bit) 1080p@60Hz, 3D | 4K@60Hz 4:2:0, 4K@30Hz 4:4:4, 1080p @60Hz, 3D | 4K @60Hz (4:2:0 10-bit), 4K @60Hz (YUV 4:4:4 8-bit) 1080p@60Hz, 3D |
| Transmission Range | 230ft (70m): 1080p 130ft (40m): UHD 4K @60Hz 4:2:0 | 230ft (70m): 1080p 130ft (40m): 4K@60Hz | 230 ft. (70m): 4K@60Hz and 1080p | 328ft (100m): 1080p 230ft (70m): 4K@60Hz | 328ft (100m) @1080p & 230ft (70m): 4K@30Hz | 230ft (70m): 1080p 130ft (40m): 4K @60Hz |
| Local HDMI Output on TX (Loopout) | No | No | Yes | No | No | Yes |
| HDMI | 1.4 | 2.0a | 2.0a | 2.0a | 1.4 | 2.0a |
| HDCP | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 | 2.2 |
| HDR | No | Yes | Yes | Yes | No | Yes |
| Bandwidth | 10.2 Gbps | 18 Gbps | 18 Gbps | 18 Gbps | 10.2 Gbps | 18 Gbps |
| RS-232 | No | Yes | No | Yes | Yes | Yes |
| USB Extension | No | No | No | Yes (USB 2.0) | No | No |
| Recommended Devices | PC, XBOX One /S, PS3/PS4, Amazon Fire TV Cube/Stick, Apple TV, Roku, DVD or BlueRay Player, Satellite Box, Cable Box, Android Box, and more! | PC, XBOX One X, PS4 Pro, Amazon Fire TV Stick/Cube 4K , Apple TV 4K, Roku 4, Cisco Cable Box, Comcast, Vizio TV, SkyQ, DVD or BlueRay Player, Satellite Box, Cable Box, Android Box, and more! | PC, XBOX One X, PS4 Pro, Amazon Fire TV Stick/Cube 4K , Apple TV 4K, Roku 4, Cisco Cable Box, Comcast, Vizio TV, SkyQ, DVD or BlueRay Player, Satellite Box, Cable Box, Android Box, and more! | PC, XBOX One X, PS4 Pro, Amazon Fire TV Stick/Cube 4K , Apple TV 4K, Roku 4, Cisco Cable Box, Comcast, Vizio TV, SkyQ, DVD or BlueRay Player, Satellite Box, Cable Box, Android Box, and more! | PC, XBOX One /S, PS3/PS4, Amazon Fire TV Cube/Stick, Apple TV, Roku, DVD or BlueRay Player, Satellite Box, Cable Box, Android Box, and more! | PC, XBOX One /S, PS3/PS4, Amazon Fire TV Cube/Stick, Apple TV, Roku, DVD or BlueRay Player, Satellite Box, Cable Box, Android Box, and more! |
